Reception / Party (AW-UB50/UB10 + Camcorder + PTZ Camera)
At a party celebrating the bride and groom, a variety of moments unfold one after another, from lively highlights to deeply emotional scenes.
Capturing these moments in full detail with a sense of immersion, while also live-streaming key events like the cake-cutting on venue screens in real time, is essential. However, achieving this with high-quality footage while operating with a small crew is not an easy task.
By combining Panasonic’s PTZ cameras and box-style cameras, efficient yet professional video production becomes possible.
* The image is for illustrative purposes only.
Production and effects
In addition to the shots captured by the cameraman on-site, using remotely operated PTZ cameras adds variety to camera angles and enhances the sense of immersion.
Furthermore, for cinematic-style end-roll movies, which have been increasingly in demand in recent years, filming with a box-style camera equipped with an interchangeable lens enables the production of high-quality footage.
Additionally, by combining handheld cameras with PTZ cameras and box-style cameras, backup footage can be secured in case of any unexpected filming issues.
* The image is for illustrative purposes only.

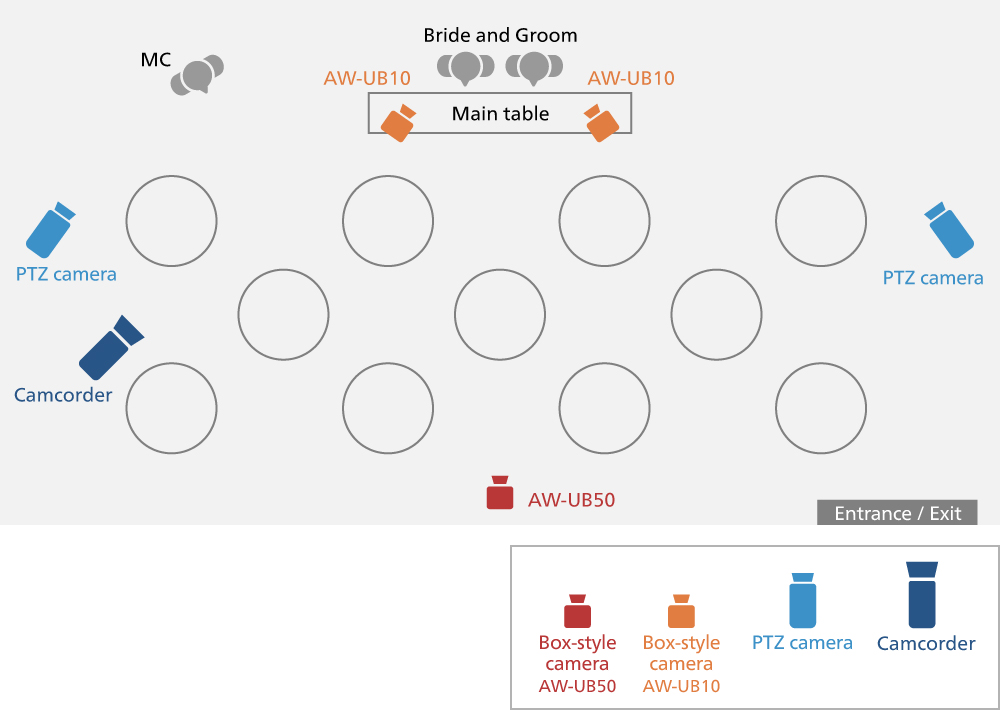

Equipment configuration and installation location
-
Box-style camera: 3 cameras (AW-UB50/UB10)
One camera is positioned at the center back of the room to capture two-shots of the bride and groom at the main table, and two additional cameras are placed at either end of the table.
-
PTZ camera: 2 cameras
Two cameras are installed on either side, facing the main table. They are used for live streaming dynamic scenes such as entrances, exits, and performances onto venue screens, as well as for recording footage.
-
Camcorder: 1 camera
Used as a freely movable recording camera, allowing flexibility to capture irregular angles.
-
Remote camera controller, remote operation panel, and switcher
All remote cameras are centrally controlled through operation panels and switchers.

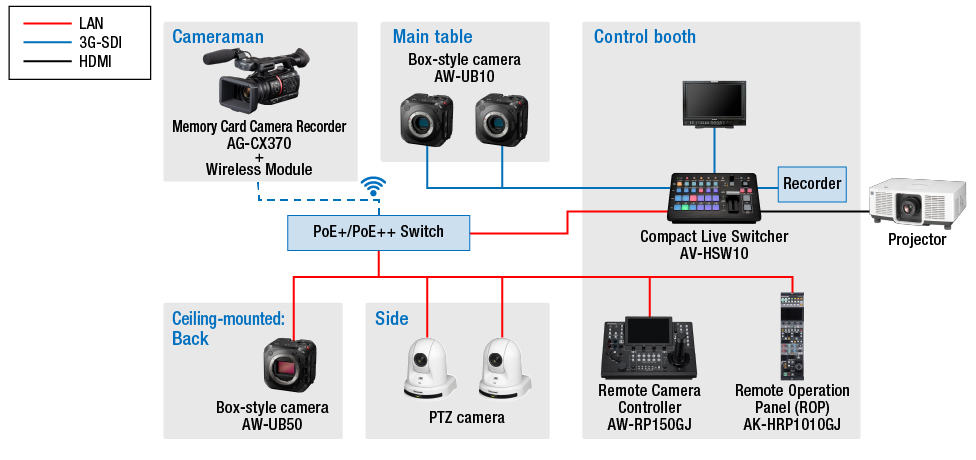

System configuration diagram
- * Support for linking AW-UB50 and AW-RP150GJ is planned for the future.
- * Support for NDI® HX2 is planned for the future.
