System Cameras

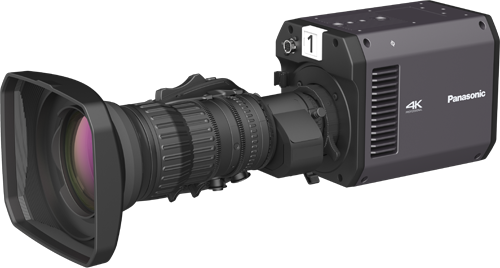

4K Multi Purpose Camera

  • AK-UBX100

(Preliminary)

General
Power Supply DC 12 V (DC 11 V - 17 V)
Power Consumption 40 W (body only, when 3G SDI x 4 is output)
60 W (maximum power when all accessories are connected and each output terminal is outputting at maximum)
Operating Temperature –10 °C to 45 °C (14 °F to 113 °F)
(Preheating required under a temperature 0°C (32 °F) or below)
Operating Humidity 85% or less (relative humidity)
Storage Temperature −20 °C to 60 °C (−4 °F to 140 °F)
Weight Approx. 1.9 kg (4.19 lbs.) (body only)
Dimensions (W x H x D) 118 mm x 140 mm x 174.8 mm
(4-21/32 inches x 5-17/32 inches x 6-7/8 inches) (excluding protrusions)
Camera Unit
Pickup Device 19.04 million pixels, MOS sensor
Optical Filter ND CLEAR, 1/4, 1/16, 1/64
Lens Mount 2/3-type bayonet
Sensitivity [LOW LIGHT]: F10(59.94 Hz)/F11(50 Hz)
[NORMAL]: F6(59.94 Hz)/F7(50 Hz)
2000 lx, 3200 K, when white reflectivity is 89.9%
Horizontal Resolution 4K 2000 TV lines or above (center)
HD 1000 TV lines or above (center)
S/N 62 dB or above
Gain Switching -6, -3, 0, 3, 6, 9, 12, 15, 18
Shutter Speed [59.94i]/[59.94p] mode 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
[50i]/[50p] mode 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
[29.97p] mode 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
[25p] mode 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
[23.98p] mode 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Shutter Open Angle 3 deg to 359.5 deg (can be set in 0.5 deg steps)
System Format 3840x2160/59.94p/50p/29.97p/25p/23.98p
1920x1080/59.94p/50p/29.97p/25p/23.98p/59.94i*/50i*

* Interlace formats are supported by conversion from progressive.

Video Input/Output
<12G SDI OUT1> Terminal BNC x 1
12G/6G/3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
<12G SDI OUT2> Terminal BNC x 1
12G/6G/3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
<HD SDI OUT> Terminal BNC x 1
3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
<G/L IN> Terminal BNC x 1
1 V [p‑p], 75 Ω
Other Input/Output
<SFP 1>Terminal For SFP+/28 transceiver x 1
<SFP 2>Terminal For SFP+/28 transceiver x 1
<LENS>Terminal 12-pin x 1
<DC IN>Terminal XLR x 1, 4-pin, DC 12 V (DC 11 V - 17 V)
<REMOTE>Terminal 10-pin x 1
<TALLY OUT>Terminal 4-pin x 1
<LAN>Terminal RJ-45 x 1
