4K Studio Camera Equipped for On-site Production to the Future of Video Production
Exceptional Resolution
The camera’s new MOS sensor uses oversampling to achieve 2,000 TVL resolution, both horizontally and vertically, for detailed high-definition reproduction. With F10 (2000 lux) sensitivity and a signal-to-noise ratio of 62 dB or higher, the sensor ensures low-noise, high-quality video even in very low-light conditions.
Various Interfaces without CCU
The AK-UCX100 can operate independently as a standalone camera head without a CCU, and it supports a variety of IP standards, including 12G-SDI, SMPTE ST 2110, NDI® High Bandwidth*, and SRT without a CCU, providing flexible compatibility with both baseband and IP systems. In addition, it is compatible with Panasonic's AK-UCU700 CCU series and the newly developed AK-CFA100 Camera Fiber Adaptor, offering a wide range of options to accommodate different on-sight environments.
- * NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.
SMPTE ST 2110 Support for IP
The AK-UCX100 addresses various IP-migration issues to maintain video quality, improve operability and more. SMPTE ST 2110 compatibility enables transmission of uncompressed 4K video for stable IP operation in both live and studio settings. Support for JPEG XS* allows low-latency transmission of visually lossless video quality, ensuring smooth video transmission even in bandwidth-constrained environments.
- * Support via firmware update planned.
Centralized management of multiple studios in one location through the ST 2110 workflow
Tagged VLAN function for reliable operation without CCU
For operation without CCU, the “Tagged VLAN function” can be used to separate multiplexed video/audio/control signals into video/audio signal and control signal networks.
This allows you to use the camera with the existing ST 2110 workflow with the camera head alone.
Tagged VLAN function (without CCU)
What is Tagged VLAN?
Tagged VLAN is a VLAN method in which an identification number (VLAN ID) of the group to which a frame belongs is written in each frame that flows through the network. The network switch looks at the ID and relays frames to only those terminals in the same group.
Supports redundancy operations of the ST 2110
This function makes redundancy operation possible. In addition, network redundancy by the SMPTE ST 2110 is also supported during IP operation.
Redundancy operation configuration (examples)
Simultaneous HLG (BT.2020) and SDR (BT.709)
Hybrid Log Gamma (HLG) achieves fine gradation of light and dark with a wide dynamic range and ITU-R BT.2020 compatibility allows reproduction of nearly all natural colors for superior color accuracy. What’s more, simultaneous use of HLG (BT.2020) and SDR (BT.709) enables optimal color reproduction for virtually any content.

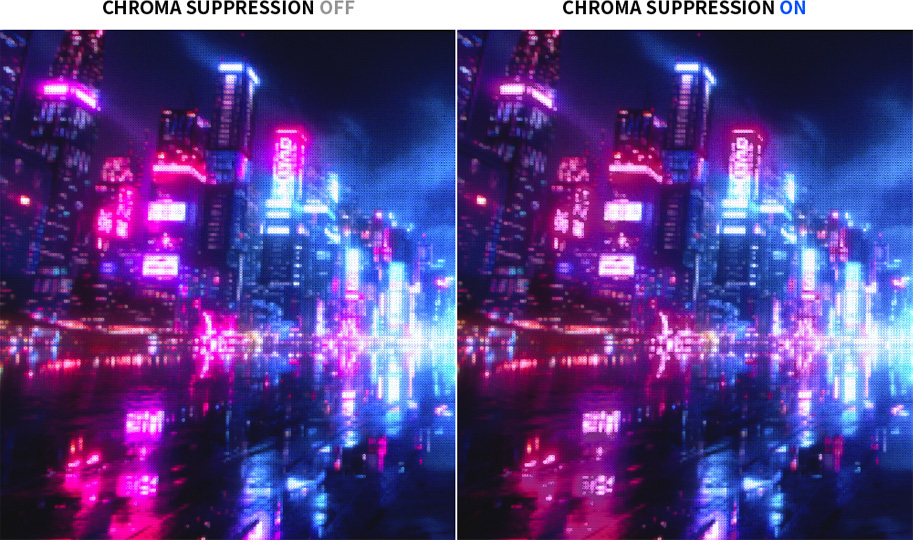

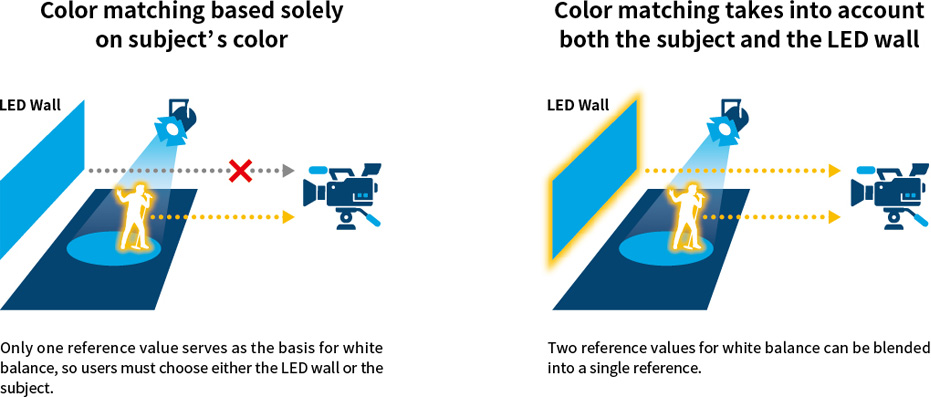

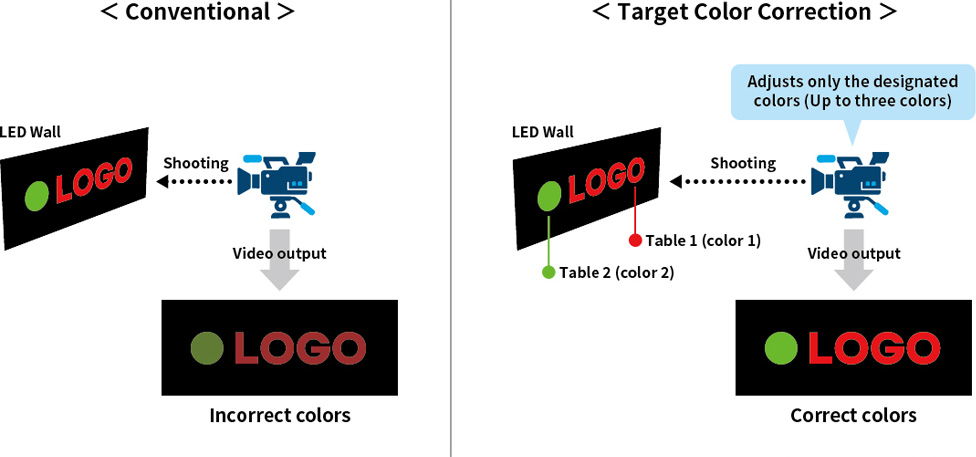

HD Low-Pass Filter for Reduced Moiré
An HD optical low-pass filter* can be added to the FX filter slot. LED walls commonly used in today’s live stage productions are prone to cause moire effect during shooting, so the HD optical low-pass filter enables the AK-UCX100 to minimize this effect and beautifully capture live performances incorporating LED walls.
- * Paid option
Without HD optical low-pass filter
With HD optical low-pass filter
Integration with Panasonic PTZ Cameras
When paired with an integrated 4K camera, the same remote operation panel (ROP) can be used for seamless color matching, making it easy to create dramatic multi-angle video on location.
High-precision focus assist function
The AK-UCX100 is equipped with a high-precision focus indicator that visually guides focus points, along with a focus guide leveraging image-plane phase detection technology to display focus status using intuitive icons. These features enhance usability in live productions where every moment counts. Additionally, VF Shadow Boost enhances visibility by increasing the contrast of darker areas of the viewfinder.

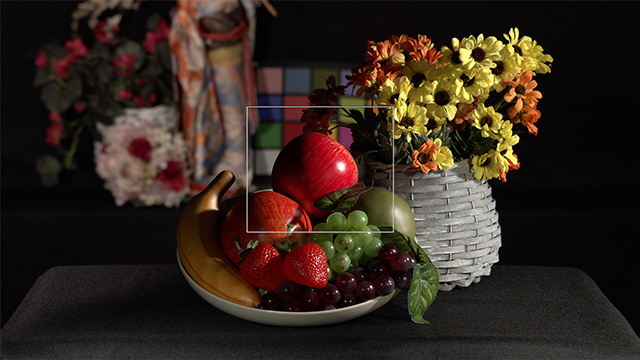

Focus icon turns green when framed subject (background flower) is in focus.

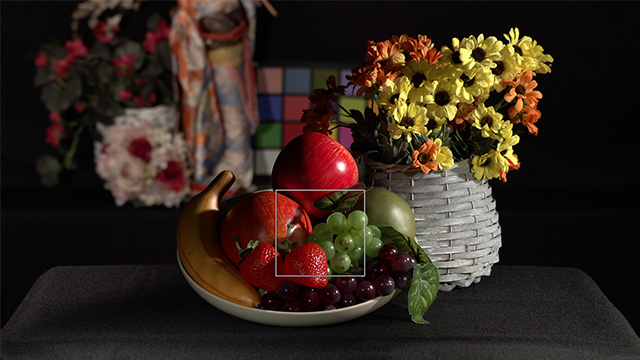

Focus icon turns yellow when you shift the focus to another subject (foreground flowers), causing it to lose focus.
Focus icon turns green when accurate focus is achieved manually.

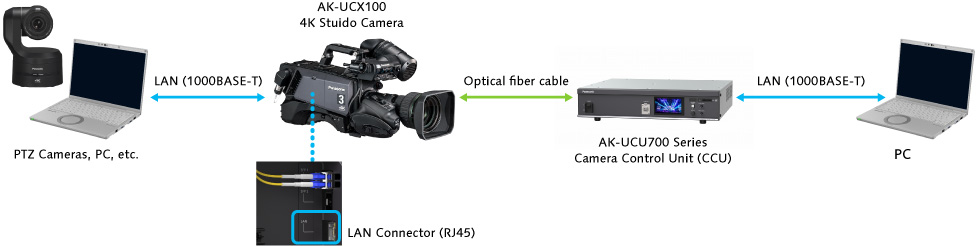

Video and Data Transmission (TRUNK)
Video and data can be transmitted between the camera and CCU via an optical cable, allowing system upgrades based on operational needs. Two 3G-SDI systems (CCU/CFA to camera) with built-in frame synchronizer (FS) can be used for the prompter, fixed return, and camera-side monitoring (studio floor, etc.). Also, one 3G-SDI system (camera to CCU/CFA) with built-in FS outputs video from a handheld or PTZ camera in a studio or in the field. Video input uses built-in FS for asynchronous video signals.
TRUNK Redundancy (examples)
Supports 4K 2x and HD 4x high-speed shooting
High-speed shooting at up to 2x speed in 4K and 4x speed in HD is supported. This function enables high-speed shooting that gives rich expressive power to dynamic video content production, including sports.
4K: 2x speed
HD: 2x speed, 3x speed, 4x speed
Other Features
- 4K redundant connections using two SFP28 slots.
- Genlock IN for synchronizing video with external signals, and reference output.
- TSL 5.0 for sending and receiving tally information.
- Built-in ND filter with multiple options: Clear, 1/2, 1/4, 1/16 and 1/64.
