Features

Imaging Performance That Captures Every Moment

5K 1.2-type Global Shutter MOS Sensor

The AW-UER200W/K and AW-UER210W/K feature the industry's first* 1.2-type 5K MOS sensor with a global shutter in a PTZ camera. It delivers natural, low-distortion, low-flicker images for studio productions using LED walls, live events with dynamic lighting effects, and sports broadcasting. In addition, 5K oversampling produces stunningly detailed 4K video, faithfully reproducing the texture and fine details of every subject.

• * Among video-production PTZ cameras equipped with a MOS sensor of 1 inch or larger. As of September 2026, according to Panasonic research.

HD 180 fps Support for Immersive Slow-Motion Footage*

The AW-UER200W/K and AW-UER210W/K are planned to support high frame rate (HFR) recording at 120 fps and high-speed HD recording at 180 fps through a future update. It delivers high-resolution footage with exceptional clarity, making it easy to see even the finest details in slow-motion replays and referee review footage.

• * Future support planned for the third quarter of CY2027.

Newly Developed Ultra-Fast Zoom Lens with an 80° Wide Angle and 22x Optical Zoom

Supports 22x optical zoom* and variable zoom speeds ranging from an ultra-fast approximately 0.5 seconds from telephoto to wide to a maximum of 180 seconds, enabling smooth, expressive zooms tailored to each scene and creative intent.

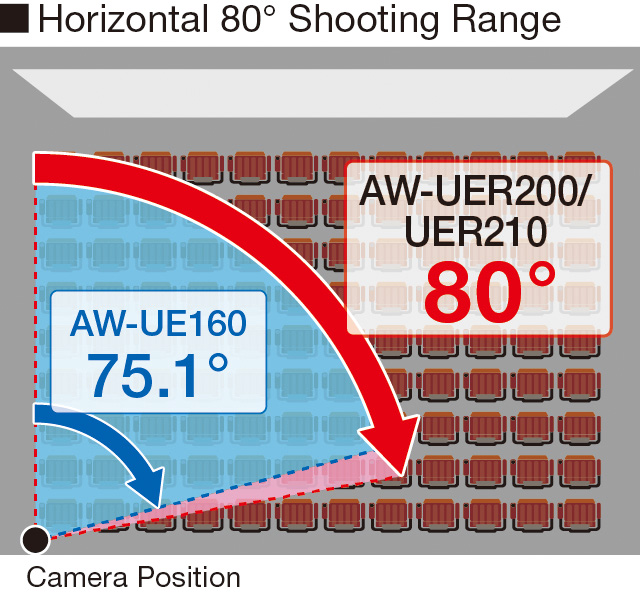

The approximately 80° horizontal viewing angle also provides wide coverage, making it easy to capture the entire scene in confined installation spaces.

• * 35 mm equivalent: f=22.5-500mm

Break Free from Angle Limitations with the Roll Mechanism

The AW-UER200/UER210 features a ±200° roll mechanism, enabling striking visual effects such as rolling camera movements.
It also supports simultaneous 16:9 and 9:16 output, providing the flexibility to create both traditional and vertical-format content for social media and live streaming.
Free your camera placement from installation constraints and position it based on the shot you want to capture. In addition, one-touch horizon adjustment from the remote controller enables fast setup, even when the camera is mounted on robotics without crane or gimbal functionality or installed on angled ceilings.

Simultaneous 16:9 and 9:16 Output

The AW-UER200/UER210 supports rotation output using its built-in roll mechanism. By cropping vertical video from the camera's full sensor image, it can simultaneously output both a standard 16:9 feed and a 9:16 vertical feed. This provides the flexibility to create content for social media streaming and vertical LED walls while enabling efficient multi-format production from a single camera.

* The image is for illustrative purposes only.

One-Touch Horizon Adjustment and Automatic Horizon Leveling

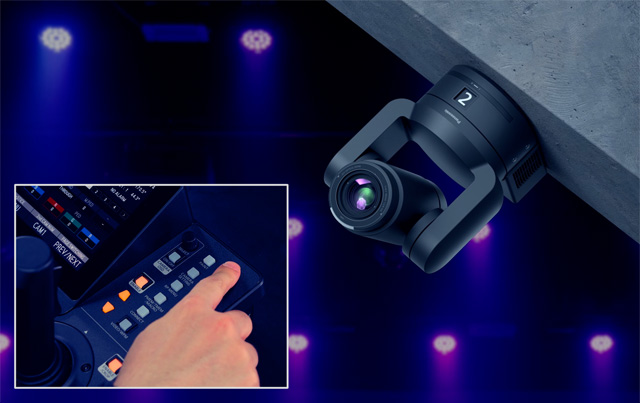

The AW-UER200/UER210 features one-touch horizon adjustment, enabling quick and easy camera leveling during setup. Even in challenging installation environments, such as cranes or angled ceilings, it helps ensure fast, smooth deployment. It also includes automatic horizon leveling to maintain a level image during operation, significantly reducing the need for manual horizon adjustments from setup through production.

* The image is for illustrative purposes only.

Reduce Operational Workload and Streamline Production Workflows

Seamless IP System Integration with SMPTE ST 2110 and Dante^® (AW-UER210W/K only)

The AW-UER210W/K supports SMPTE ST 2110 and Dante^®. In addition to uncompressed 4K video output, SMPTE ST 2110 supports low-latency transmission using JPEG XS*¹ and enables return video workflows via IP input. The AW-UER210W/K also supports Dante^® audio, providing flexible IP-based operation to suit a wide range of applications and system configurations. Furthermore, both SMPTE ST 2110 and Dante^® support redundant connections, enabling seamless integration into existing redundant infrastructures.

• *1: Future support planned for the third quarter of CY2027.

• * Dante^® is a registered trademark of Audinate Pty Ltd.

Built-in Auto Framing Automatically Recreates Your Intended Composition

The built-in AI-based Auto Framing function automatically tracks subjects and maintains the desired composition with high precision, all within the camera itself. It supports stable video production in dynamic environments, such as studio productions, live events, and sports, where subjects move quickly or cross paths. During operation, users can seamlessly switch between fully automatic and semi-automatic modes, allowing for fine composition adjustments and the flexibility to adapt to the needs of any production.
In addition, by leveraging Media Production Suite, users can streamline multi-camera workflows and enhance operational efficiency.

* The image is for illustrative purposes only.

Comprehensive Support for Standard Protocols, Ready for Streaming and a Wide Range of Production Applications

The AW-UER200W/K and AW-UER210W/K support a wide range of standard protocols, including NDI^® High Bandwidth, SRT, FreeD, and OpenTrackIO, enabling seamless integration with virtually any production environment or system. It can be easily incorporated into existing systems and adapts flexibly to a wide variety of production applications. Even in live event and streaming environments with minimal crews, no protocol conversion hardware is required, helping reduce operational complexity and workload.

Equipped with a Wide Range of IP and Baseband Interfaces

The AW-UER200W/K and AW-UER210W/K are equipped with standard with 12G-SDI, 3G-SDI, HDMI, and IP outputs, enabling seamless integration into existing video production systems. In addition, the AW-UER210W/K features dual SFP28/+* interfaces, allowing users to select the optimal connection method based on their production environment and system requirements. From maximizing existing infrastructure to building the latest IP-based production systems, the cameras provide the flexibility to support a wide range of workflows.

• * SFP modules must be purchased separately.

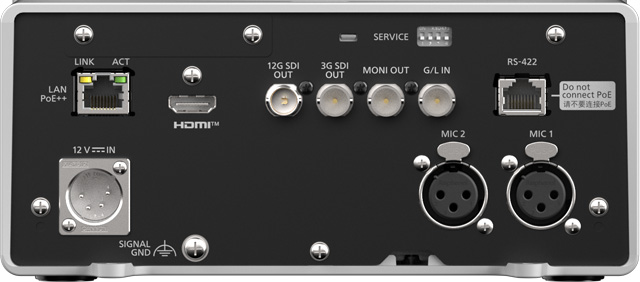

AW-UER200W/K Rear View

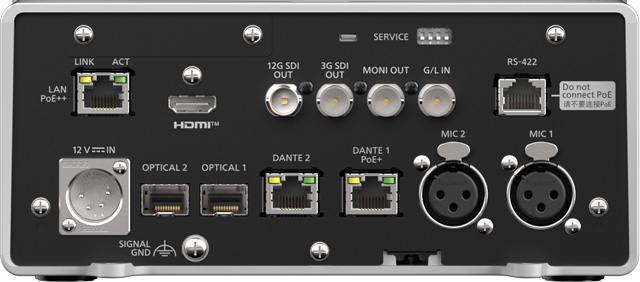

AW-UER210W/K Rear View

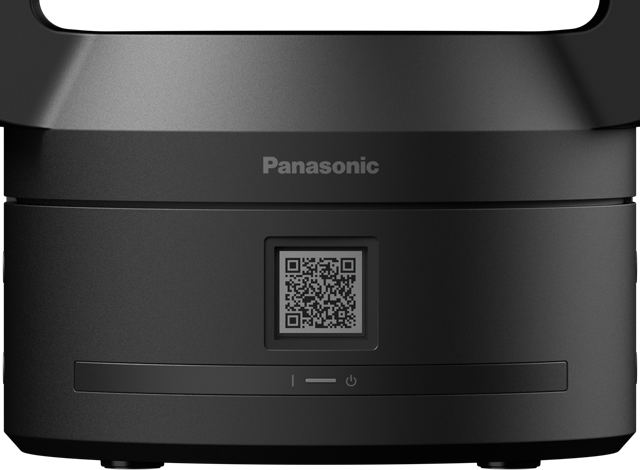

Direct Access to Essential Information with an E-Paper Display

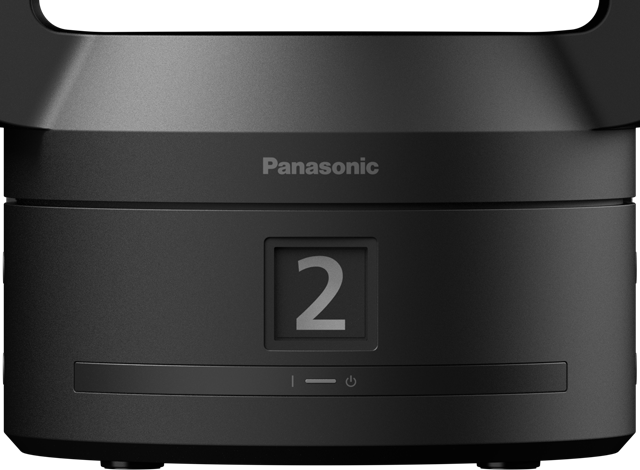

The front of the camera features a built-in E-paper display for status information. It dynamically updates key information such as the camera number, operating status, IP address, and QR codes, providing clear, highly visible information at a glance.

E-Paper Display Examples
