Ultra-wide 4K capture with AI-driven Auto Framing and seamless IP connectivity
Group Framing Utilizing AI*
Group Framing
Automatically adjusts the field of view so that all participants within the shooting area, such as in web conferences, fit in the frame. Even if people enter or leave during the meeting, the framing is optimized each time.
Preset Framing
Automatically switches to a registered field of view when someone enters a preset area such as a podium or stage. Also enables automated camera work even with minimal staff.
- * Available only when Priority mode is set to ePTZ/AI.
Single Cable Solution
In addition to PoE*1 supply, power supply from a computer via USB cable is also supported to enable operation without connecting an AC adaptor, realizing a single cable solution for video transmission, camera control and power supply. Furthermore, the AW-UE5WG/KG supports NDI® HX2 and NDI® HX3, making it easy to integrate into existing networks. High-quality video can be transmitted smoothly over IP, enabling flexible production workflows.

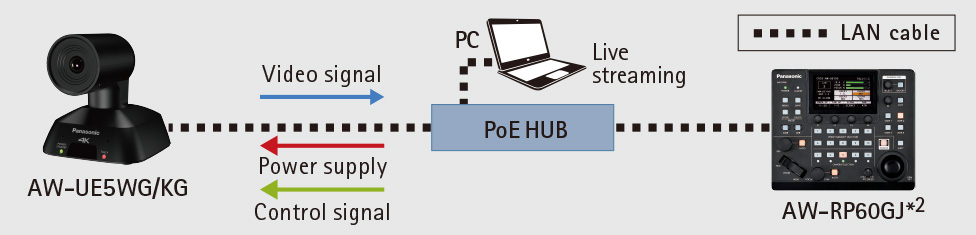

Using PoE Supply

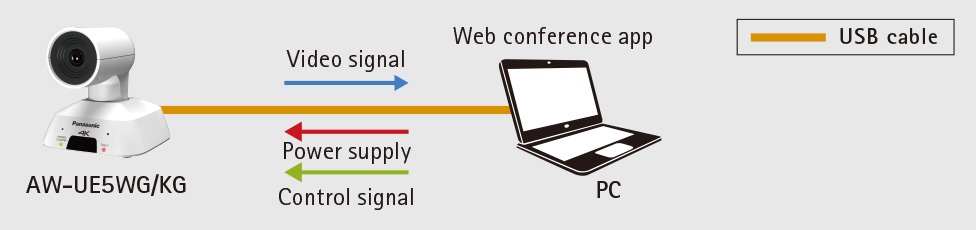

Using as a USB Camera
- *1: Abbreviation of Power over Ethernet.
- *2: AW-RP60GJ connection support planned for the future. See the Panasonic website for more details. This feature may require a software update.

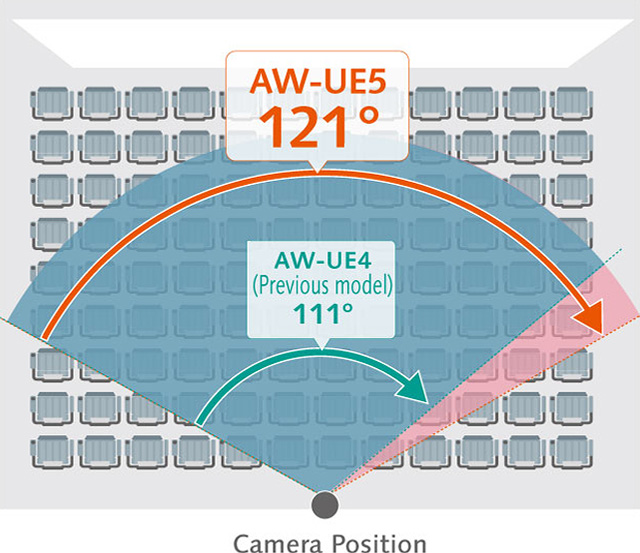

Ultra-wide-angle Lens with a 121° Field of View
Equipped with an ultra-wide-angle lens with a 121° field of view to capture every part of even the largest spaces and transmit wide-angle video in limited installation space.
The 121° Field of View
Smooth 4K/60p Video Output
Supports 3840x2160/60p 4K video output and a variety of other formats for use in a wide range of environments.
Output Format
- * A PoE hub or an AC adaptor (15 W) is recommended when using HDMI output.
- *1: Available only when Priority mode is set to 4K High Frame Rate.
- *2: Available only when Priority mode is set to ePTZ/AI.

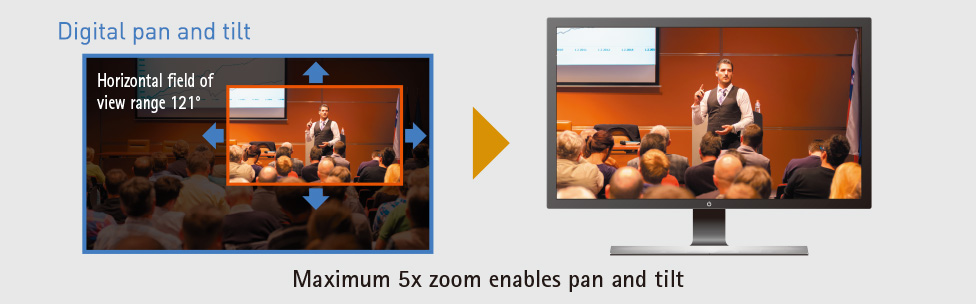

Digital Pan, Tilt and Zoom*
Equipped with digital zoom for magnification up to five times to capture distant subjects clearly. Once images are zoomed in, digital pan/tilt is available, offering flexibility to shoot from different angles.
- * Available only when Priority mode is set to ePTZ/AI.
* Images are simulated.
RTMP/RTMPS*1
Supports RTMP/RTMPS*1 for direct upload and streaming of video on services such as YouTube Live or Facebook Live. Video can be uploaded and streamed directly from the camera to live streaming services.
* Images are simulated.

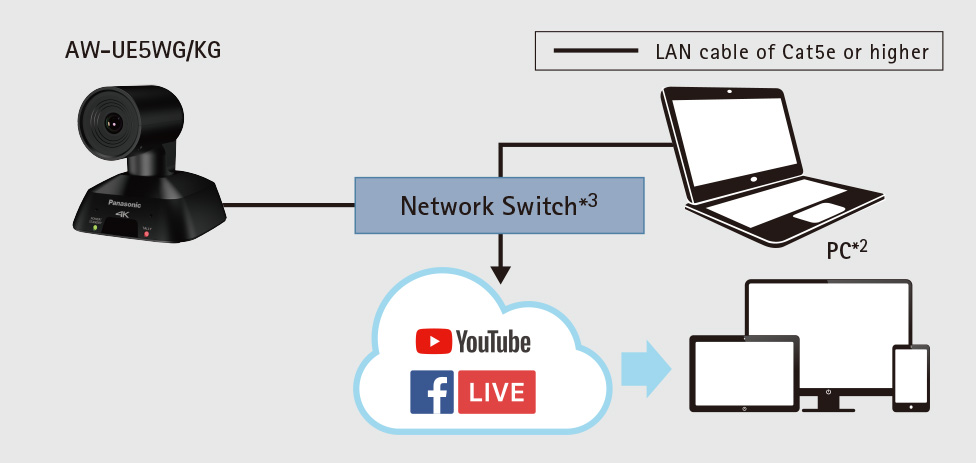

RTMP/RTMPS Connection
- *1: RTMP: Real-Time Messaging Protocol, RTMPS: Real-Time Messaging Protocol Secure.
- *2: A computer is required for connection to the streaming server.
- *3: PoE support.
Expanded Flexibility with NDI®
The AW-UE5 supports NDI® HX2 and NDI® HX3 that can transmit high-quality video via IP. NDI® HX2 and NDI® HX3 achieve efficient video transmission with limited bandwidth.
Since the video source is accessible from any devices on the same network and even devices with unknown IP addresses are automatically recognized, a flexible IP video production workflow at the shooting site can be built.
- * NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.
Compatible with free Panasonic software
Media Production Suite
The Media Production Suite is a software platform that offers a variety of functions for enhanced video quality and increased operational efficiency. By centralizing the management and monitoring of Panasonic cameras, it facilitates the streamlining of setup, management, and control – even in dynamic shooting environments such as online lectures, webinars, academic conferences, and live events. Additionally, with plug-ins available for an additional fee, the Media Production Suite provides numerous functions for operational support, enabling high-quality productions to be achieved with minimal crew.
Previous PTZ camera software (EasyIP Setup Tool Plus, PTZ Control Center, and Auto Tracking Software) have been integrated into the Media Production Suite.
