High-Definition Video, Supporting Optimal System Configuration
- Supports HDMI input and output with the Kairos Core 2000/200
- No external converter required as it is a board type that attaches to the rear slot
- Can be combined with the SDI input/output board AT-KC20M1 to enable various system configurations
- Supports output with flexible resolution

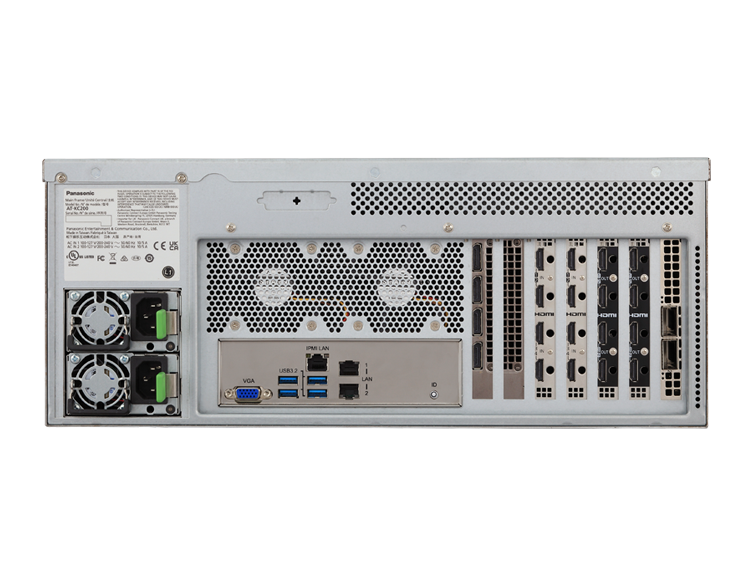

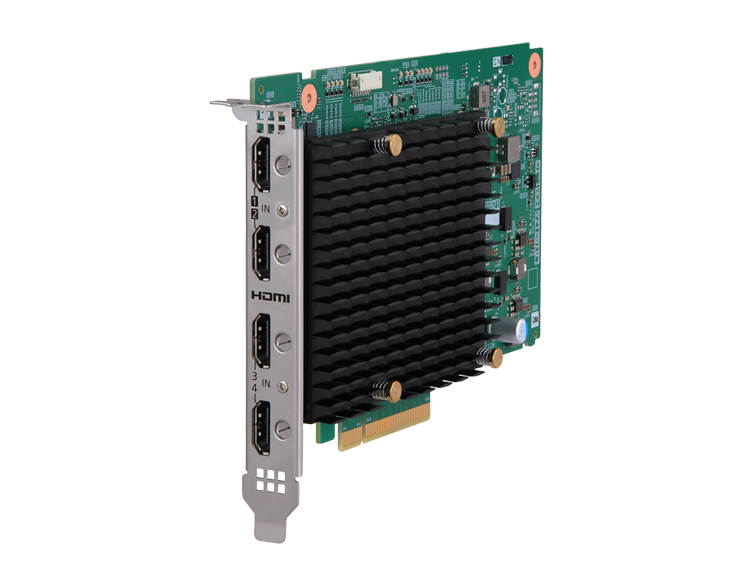

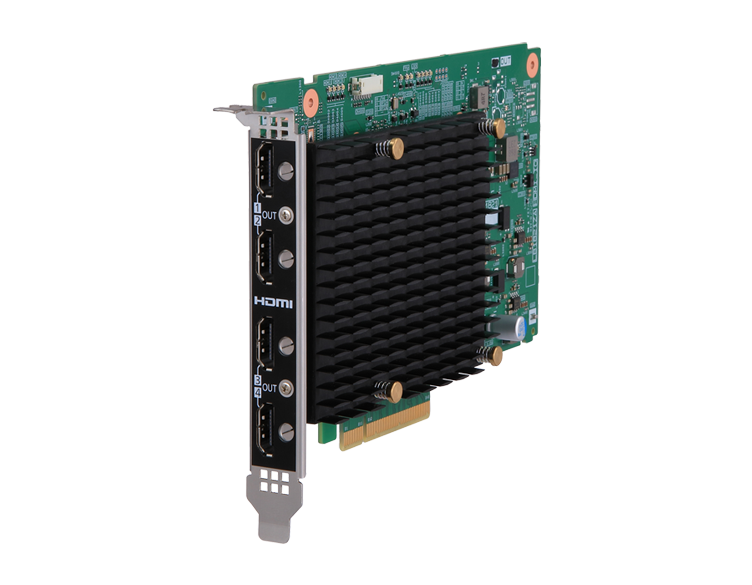

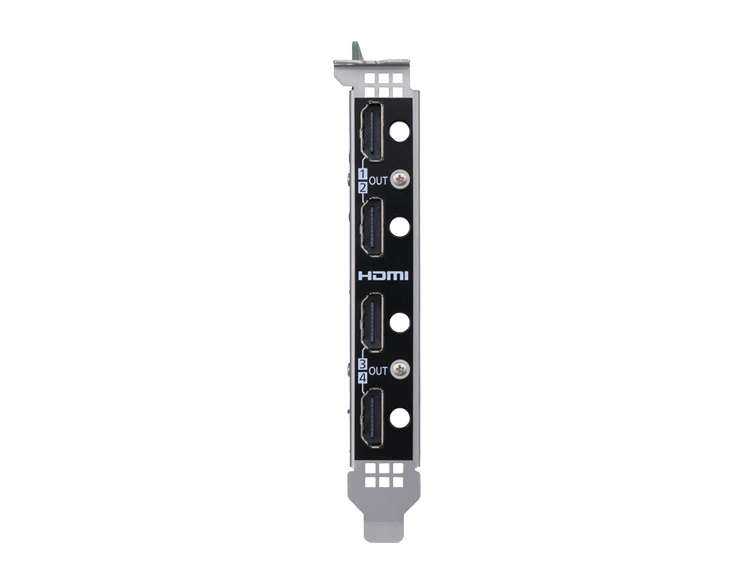

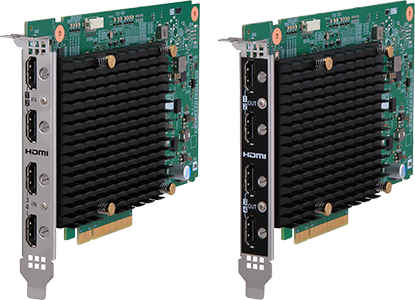

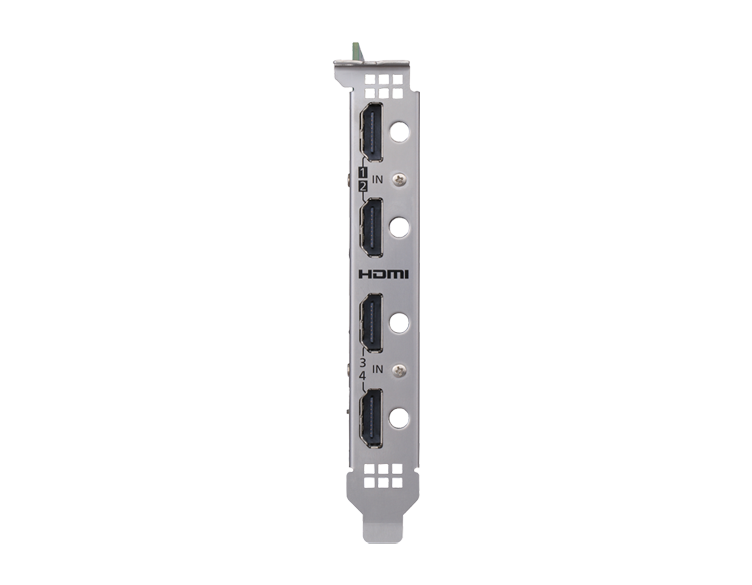

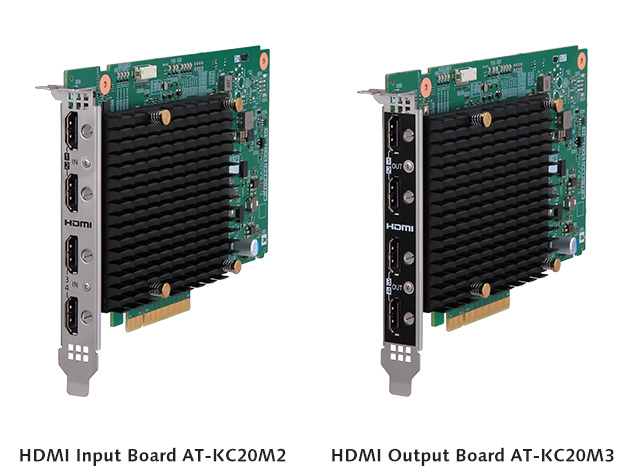

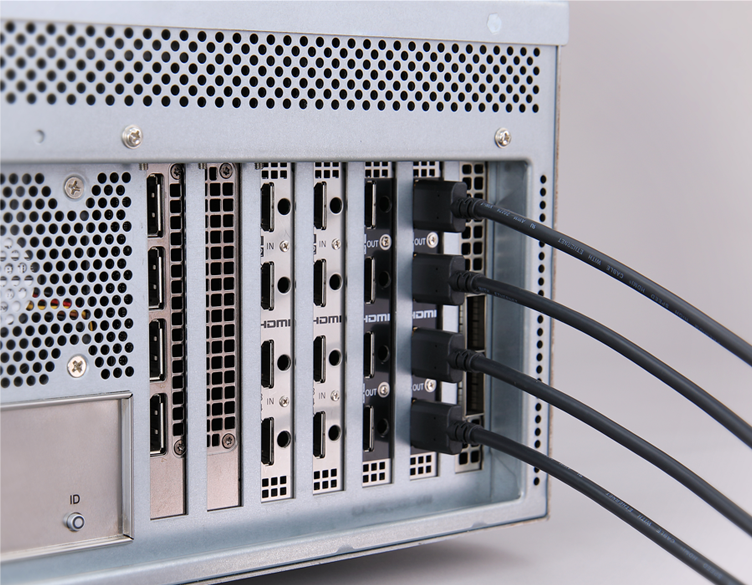

HDMI input/output is supported by attaching it to the rear slot of the Kairos Core 2000/200 mainframe*1. The HDMI input board AT-KC20M2 supports 4K@60Hz 4:4:4 12bit on PORT1 and PORT2, and 4K@60Hz 4:2:2 12bit on PORT3 and PORT4. The HDMI output board AT-KC20M3 supports 4K@60Hz 4:4:4 12bit on all four ports (PORT1–PORT4). Up to four boards*2 can be installed in one Kairos Core 2000/200 mainframe, and by combining it with the SDI input/output board AT-KC20M1, various system configurations are possible. Please consult your Panasonic dealer regarding the installation of the HDMI input board (AT-KC20M2) and HDMI output board (AT-KC20M3).
- *1: Requires upgrade to Version 2.0 or later to use.
- *2: Up to two boards can be installed in both the AT-KC200L1 and the AT-KC2000S1/KC2000S2.

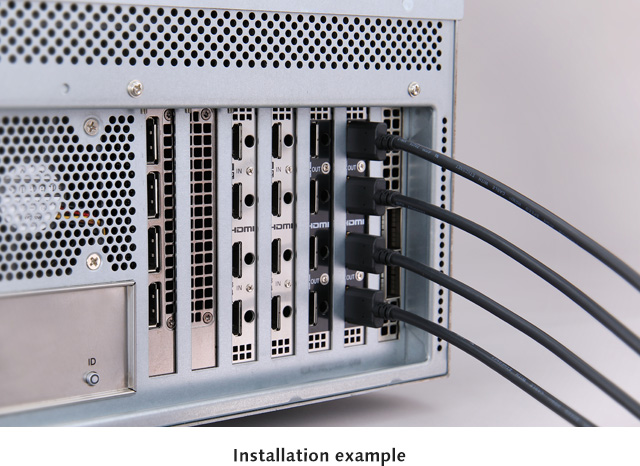

Example of HDMI Inputs and Outputs for Kairos Core 2000/200
| AT-KC2000/AT-KC2000X1 AT-KC200/AT-KC200X1 |
AT-KC2000S1/AT-KC2000S2 AT-KC200L1 |
|
|---|---|---|
| HDMI boards mount | 4 units (AT-KC20M2 x2, AT-KC20M3 x2) |
2 units (AT-KC20M2 x1, AT-KC20M3 x1) |
| HD/FHD/4K Maximum I/O | 8 in x 8 out | 4 in x 4 out |
- * Please note that the max capacity of the RAM player reduces as below when SDI I/O boards, HDMI input boards, or HDMI output boards are installed.
| Number of boards | Not installed | 1 board | 2 boards | 3 boards | 4 boards |
|---|---|---|---|---|---|
| AT-KC2000S1 | 86 GB | 83 GB | 80 GB | — | — |
| AT-KC2000S2 | 67 GB | 64 GB | 61 GB | — | — |
| AT-KC2000 | 96 GB | 93 GB | 90 GB | 87 GB | 84 GB |
| AT-KC2000X1 | 83 GB | 79 GB | 76 GB | 73 GB | 70 GB |
| AT-KC200 | 32 GB | 31 GB | 30 GB | 29 GB | 28 GB |
| AT-KC200X1 | 27 GB | 26 GB | 25 GB | 24 GB | 23 GB |
| AT-KC200L1 | — | — | — | 28 GB | 28 GB |
- * The configuration shown in the table above is just one example. You can freely combine the AT-KC20M1, AT-KC20M2, and AT-KC20M3 within the maximum number of units allowed, depending on your operating conditions.
Supports output with flexible resolution*
When using ST 2110 or HDMI output, the resolution can be freely set within the following range of conditions.
Any resolution can be set without being restricted to standard formats.
Maximum resolution: 9.8 megapixels
Adjustable pixel units : 4 pixels
- * Supported from Version 2.0.
