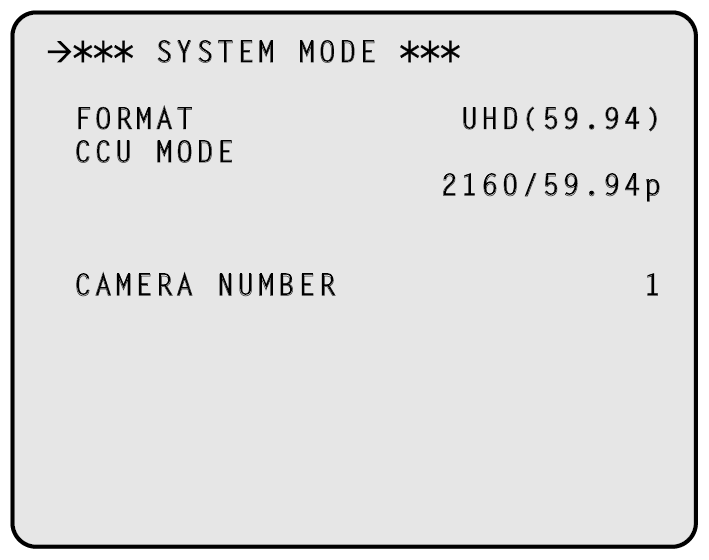

SYSTEM MODE

此画面为SYSTEM MODE菜单的选择画面。


＿＿ 表示出厂默认设置。

项目

设置值

设置详情

FORMAT

UHD(59.94)

UHD_HDR(59.94)
HS(59.94)
HS-HDR(59.94)
HD(59.94)
HD_HDR(59.94)

UHD(50)

UHD_HDR(50)
HS(50)
HS-HDR(50)
HD(50)
HD_HDR(50)

设置CCU格式。

  • 如果更改了格式，本机会自动重启。

连接AK-PLV100 时无法选择HS（59.94）/HS_HDR （59.94）/HS（50）/HS_HDR（50）。

CCU MODE
  • FORMAT : UHD(59.94)

2160/59.94p

2160/29.97p

2160/23.98p

2160/29.97psF

2160/23.98psF

2160/23psF & over59i

  • FORMAT : UHD_HDR(59.94)

2160/59.94p
2160/29.97p
2160/23.98p
2160/29.97psF
2160/23.98psF
2160/23psF & over59i

  • FORMAT : HS(59.94)

1080/59.94p-240fps
1080/59.94p-180fps
1080/59.94p-120fps
720/59.94p-240fps
720/59.94p-180fps
720/59.94p-120fps

  • FORMAT : HS_HDR(59.94)

1080/59.94p-240fps
1080/59.94p-180fps
1080/59.94p-120fps
720/59.94p-240fps
720/59.94p-180fps
720/59.94p-120fps

  • FORMAT : HD(59.94)

1080/59.94p
1080/29.97PsF
1080/23.98PsF
1080/23.98P over59.94i
1080/23PsF & over59i
720/59.94p

  • FORMAT : HD_HDR(59.94)

1080/59.94p
1080/29.97PsF
1080/23.98PsF
1080/23.98P over59.94i
1080/23PsF & over59i
720/59.94p

  • FORMAT : UHD(50)

2160/50p

2160/25p

2160/25psF

  • FORMAT : UHD_HDR(50)

2160/50p
2160/25p
2160/25psF

  • FORMAT : HS(50)

1080/50p-200fps
1080/50p-150fps
1080/50p-100fps
720/50p-200fps
720/50p-150fps
720/50p-100fps

  • FORMAT : HS_HDR(50)

1080/50p-200fps
1080/50p-150fps
1080/50p-100fps
720/50p-200fps
720/50p-150fps
720/50p-100fps

  • FORMAT : HD(50)

1080/50p
1080/25psF
720/50p

  • FORMAT : HD_HDR(50)

1080/50p
1080/25psF
720/50p

设置CCU输出信号的格式。

可以选择的输出信号格式根据[FORMAT]设置而不同。

85579.png“CCU MODE和FORMAT条件”

  • 如果更改了格式，本机会自动重启。

连接AK-UC3300 时不能选择FORMAT 中的以下设置 值：HS(59.94) 和FORMAT ：HS_HDR(59.94)。
[1080/59.94p-240fps]
[1080/59.94p-180fps]
[720/59.94p-240fps]
[720/59.94p-180fps]



连接AK-UC3300 时不能选择FORMAT 中的以下设置 值：HS(50) 和FORMAT ：HS_HDR(50)。
[1080/50p-200fps]
[1080/50p-150fps]
[720/50p-200fps]
[720/50p-150fps]

CAMERA NUMBER

1至99

设置要显示在摄像机、CCU 前部面板和ROP 上的摄像机编号。

CCU MODE和FORMAT条件

FORMAT/
CCU MODE

SDI

ANALOG

OUT1

OUT2

OUT3

OUT4

OUT5

OUT6

OUT7

OUT8

COMPOSITE /PM

UHD (59.94)

2160 /59.94p

UHD (12G): 2160 /59.94p

no signal

3G: 1080 /59.94p
HD(1080i): 1080/59.94i
HD(720): 720/59.94p

HD(1080i): 1080/59.94i
HD(720): 720/59.94p

NORMAL /PM

UHD: 2160/59.94p

2160 /29.97p (Native)

UHD (6G): 2160 /29.97p

no signal

HD: 1080 /29.97PsF

NORMAL /PM

UHD: 2160/29.97p

2160 /23.98p (Native)

UHD (6G): 2160 /23.98p

no signal

HD: 1080 /23.98PsF

NORMAL /PM

UHD: 2160/23.98p

2160 /29.97PsF

UHD: 2160/29.97PsF

HD: 1080 /29.97PsF

NORMAL /PM

2160 /23.98PsF

UHD: 2160/23.98PsF

HD: 1080 /23.98PsF

NORMAL /PM

2160 /23.98PsF & over 59i

UHD: 2160/23.98PsF

HD: 1080 /23.98PsF

HD: 1080 /23.98p over 59.94i

NORMAL /PM

UHD_HDR (59.94)

2160 /59.94p

UHD_HDR (12G): 2160 /59.94p

no signal

3G_HDR: 1080 /59.94p
3G_SDR: 1080 /59.94p
HD_HDR (1080i): 1080 /59.94i
HD_SDR (1080i): 1080/59.94i
HD_HDR (720p): 720/59.94p
HD_SDR (720p): 720/59.94p

HD_HDR (1080i): 1080/59.94i
HD_SDR (1080i): 1080/59.94i
HD_HDR (720p): 720/59.94p
HD_SDR (720p): 720/59.94p

NORMAL /PM

UHD: 1080 /59.94p

2160 /29.97p (Native)

UHD_HDR (6G): 2160 /29.97p

no signal

HD_HDR: 1080 /29.97PsF
HD_SDR: 1080 /29.97PsF

NORMAL /PM

UHD_HDR: 2160/29.97p

2160 /23.98p (Native)

UHD_HDR (6G): 2160 /23.98p

no signal

HD_HDR: 1080 /23.98PsF
HD_SDR: 1080 /23.98PsF

NORMAL /PM

UHD_HDR: 2160/23.98p

2160 /29.97PsF

UHD_HDR: 2160 /29.97PsF

HD_HDR: 1080 /29.97PsF
HD_SDR: 1080 /29.97PsF

NORMAL /PM

2160 /23.98PsF

UHD_HDR: 2160 /23.98PsF

HD_HDR: 1080 /23.98PsF
HD_SDR: 1080 /23.98PsF

NORMAL /PM

2160 /23PsF & over 59i

UHD_HDR: 2160/23.98PsF

HD_HDR: 1080 /23.98PsF
HD_SDR: 1080 /23.98PsF

HD_HDR: 1080 /23.98p over 59.94i
HD_SDR: 1080 /23.98p over 59.94i

NORMAL /PM

HS(59.94)

1080 /59.94p- 240fps

HS_3G: 1080 /59.94p-240fps
HS_HD: 1080 /59.94i-240fps

3G: 1080 /59.94p
HD (1080i): 1080 /59.94i
HD (720p): 720 /59.94p

HD (1080i): 1080 /59.94i
HD (720p): 720 /59.94p

NORMAL /PM

1080 /59.94p- 180fps

HS_3G: 1080 /59.94p-180fps
HS_HD: 1080 /59.94i-180fps

no signal

3G: 1080 /59.94p
HD (1080i): 1080 /59.94i
HD (720p): 720 /59.94p

HD (1080i): 1080 /59.94i
HD (720p): 720 /59.94p

NORMAL /PM

1080 /59.94p- 120fps

HS_3G: 1080 /59.94p-120fps
HS_HD: 1080 /59.94i -120fps

no signal

3G: 1080 /59.94p
HD (1080i): 1080 /59.94i
HD (720p): 720 /59.94p

HD (1080i): 1080 /59.94i
HD (720p): 720 /59.94p

NORMAL /PM

720 /59.94p- 240fps

HD: 720 /59.94p-240fps

HD (720p): 720 /59.94p

NORMAL /PM

720 /59.94p- 180fps

HD: 720 /59.94p-180fps

no signal

HD (720p): 720 /59.94p

NORMAL /PM

720 /59.94p- 120fps

HD: 720 /59.94p-120fps

no signal

HD (720p): 720 /59.94p

NORMAL /PM

HS_HDR (59.94)

1080 /59.94p- 240fps

HS_3G_HDR: 1080/59.94p-240fps
HS_HD_HDR: 1080/59.94i-240fps

3G_HDR: 1080 /59.94p
3G_SDR: 1080 /59.94p
HD_HDR (1080i): 1080 /59.94i
HD_SDR (1080i): 1080 /59.94i
HD_HDR (720p): 720 /59.94p
HD_SDR (720p): 720 /59.94p

HD (1080i)_HDR: 1080 /59.94i
HD (1080i)_SDR: 1080 /59.94i
HD (720p)_HDR: 720 /59.94p
HD (720p)_SDR: 720 /59.94p

NORMAL /PM

1080 /59.94p- 180fps

HS_3G_HDR: 1080/59.94p-180fps
HS_HD_HDR: 1080/59.94i-180fps

no signal

3G_HDR: 1080 /59.94p
3G_SDR: 1080 /59.94p
HD_HDR (1080i): 1080 /59.94i
HD_SDR (1080i): 1080 /59.94i
HD_HDR (720p): 720 /59.94p
HD_SDR (720p): 720 /59.94p

HD (1080i)_HDR: 1080 /59.94i
HD (1080i)_SDR: 1080 /59.94i
HD (720p)_HDR: 720 /59.94p
HD (720p)_SDR: 720 /59.94p

NORMAL /PM

1080 /59.94p- 120fps

HS_3G_HDR: 1080/59.94p-120fps
HS_3G_HDR: 1080/59.94i-120fps

no signal

3G_HDR: 1080 /59.94p
3G_SDR: 1080 /59.94p
HD_HDR (1080i): 1080 /59.94i
HD_SDR (1080i): 1080 /59.94i
HD_HDR (720p): 720 /59.94p
HD_SDR (720p): 720 /59.94p

HD (1080i)_HDR: 1080 /59.94i
HD (1080i)_SDR: 1080 /59.94i
HD (720p)_HDR: 720 /59.94p
HD (720p)_SDR: 720 /59.94p

NORMAL /PM

720 /59.94p- 240fps

HD_HDR: 720 /59.94p-240fps

HD_HDR (720p): 720 /59.94p
HD_SDR (720p): 720 /59.94p

NORMAL /PM

720 /59.94p- 180fps

HD_HDR: 720 /59.94p-180fps

no signal

HD_HDR (720p): 720 /59.94p
HD_SDR (720p): 720 /59.94p

NORMAL /PM

720 /59.94p- 120fps

HD_HDR: 720 /59.94p-120fps

no signal

HD_HDR (720p): 720 /59.94p
HD_SDR (720p): 720 /59.94p

NORMAL /PM

HD (59.94)

1080 /59.94p

3G: 1080 /59.94p
HD: 1080 /59.94i

HD: 1080 /59.94i

NORMAL /PM

1080 /29.97PsF

HD: 1080 /29.97PsF

NORMAL /PM

1080 /23.98PsF

HD: 1080 /23.98PsF

NORMAL /PM

1080 /23.98p over 59.94i

HD: 1080 /23.98p over 59.94i

NORMAL /PM

1080 /23PsF & over 59i

HD: 1080 /23.98PsF

HD: 1080 /23.98p over 59.94i

NORMAL /PM

720 /59.94p

HD: 720 /59.94p

NORMAL /PM

HD_HDR (59.94)

1080 /59.94p

3G_HDR: 1080 /59.94p
HD_HDR: 1080 /59.94i
HD_SDR: 1080 /59.94i

3G_HDR: 1080 /59.94p
3G_SDR: 1080/59.94i
HD_HDR: 1080 /59.94i
HD_SDR: 1080 /59.94i

HD_HDR: 1080 /59.94i
HD_SDR: 1080 /59.94i

NORMAL /PM

1080 /29.97PsF

HD_HDR: 1080 /29.97PsF
HD_SDR: 1080 /29.97PsF

NORMAL /PM

1080 /23.98PsF

HD_HDR: 1080 /23.98PsF
HD_SDR: 1080 /23.98PsF

NORMAL /PM

1080 /23.98p over 59.94i

HD_HDR: 1080 /23.98p over 59.94i
HD_SDR: 1080 /23.98p over 59.94i

NORMAL /PM

1080 /23PsF & over 59i

HD_HDR: 1080 /23.98PsF
HD_SDR: 1080 /23.98PsF

HD_HDR: 1080 /23.98p over 59.94i
HD_SDR: 1080 /23.98p over 59.94i

NORMAL /PM

720 /59.94p

HD_HDR: 720 /59.94p
HD_SDR: 720 /59.94p

NORMAL /PM

UHD (50)

2160/50p

UHD (12G): 2160 /50p

no signal

3G: 1080 /50p
HD (1080i): 1080 /50i
HD (720p): 720 /50p

HD (1080i): 1080 /50i
HD (720p): 720 /50p

NORMAL /PM

UHD: 2160 /50p

2160 /25p (Native)

UHD (6G): 2160 /25p

no signal

HD: 1080 /25PsF

NORMAL /PM

UHD: 2160 /25p

2160/25PsF

UHD: 2160 /25PsF

HD: 1080 /25PsF

NORMAL /PM

UHD_HDR (50)

2160/50p

UHD_HDR (12G): 2160 /50p

no signal

3G_HDR: 1080 /50p
3G_SDR: 1080 /50p
HD_HDR (1080i): 1080 /50i
HD_SDR (1080i): 1080 /50i
HD_HDR (720p): 720 /50p
HD_SDR (720p): 720 /50p

HD_HDR(1080i): 1080 /50i
HD_SDR(1080i): 1080 /50i
HD_HDR(720p): 720 /50p
HD_SDR(720p): 720 /50p

NORMAL /PM

UHD_HDR: 1080 /50p

2160 /25p (Native)

UHD_HDR (6G): 2160 /25p

no signal

HD_HDR: 1080 /25PsF
HD_SDR: 1080 /25PsF

NORMAL /PM

UHD_HDR: 2160 /25p

2160/25PsF

UHD_HDR: 2160 /25PsF

HD_HDR: 1080 /25PsF
HD_SDR: 1080 /25PsF

NORMAL /PM

HS (50)

1080 /50p- 200fps

HS_3G: 1080 /50p-200fps
HS_HD: 1080 /50i-200fps

3G: 1080 /50p
HD (1080i): 1080 /50p
HD (720p): 720 /50p

HD (1080i): 1080 /50i
HD (720p): 720 /50p

NORMAL /PM

1080 /50p- 150fps

HS_3G: 1080 /50p-150fps
HS_HD: 1080 /50i-150fps

no signal

3G: 1080 /50p
HD (1080i): 1080 /50p
HD (720p): 720 /50p

HD (1080i): 1080 /50i
HD (720p): 720 /50p

NORMAL /PM

1080 /50p- 100fps

HS_3G: 1080/50p-100fps
HS_HD: 1080/50i-100fps

no signal

3G: 1080 /50p
HD (1080i): 1080 /50p
HD (720p): 720 /50p

HD (1080i): 1080 /50i
HD (720p): 720 /50p

NORMAL /PM

720 /50p- 200fps

HD: 720 /50p-200fps

HD (720p): 720/50p

NORMAL /PM

720 /50p- 150fps

HD: 720 /50p-150fps

no signal

HD (720p): 720/50p

NORMAL /PM

720 /50p- 100fps

HD: 720 /50p-100fps

no signal

HD (720p): 720/50p

NORMAL /PM

HS_HDR (50)

1080 /50p- 200fps

HS_3G_HDR: 1080/50p-200fps
HS_HD_HDR: 1080/50i-200fps

3G_HDR: 1080 /50p
3G_SDR: 1080 /50p
HD_HDR (1080i): 1080 /50i
HD_SDR (1080i): 1080 /50i
HD_HDR (720p): 720 /50p
HD_SDR (720p): 720 /50p

HD (1080i)_HDR: 1080 /50i
HD (1080i)_SDR: 1080 /50i
HD (720p)_HDR: 720 /50p
HD (720p)_SDR: 720 /50p

NORMAL /PM

1080 /50p- 150fps

HS_3G_HDR: 1080/50p-150fps
HS_HD_HDR: 1080/50i-150fps

no signal

3G_HDR: 1080 /50p
3G_SDR: 1080 /50p
HD_HDR (1080i): 1080 /50i
HD_SDR (1080i): 1080 /50i
HD_HDR (720p): 720 /50p
HD_SDR (720p): 720 /50p

HD (1080i)_HDR: 1080 /50i
HD (1080i)_SDR: 1080 /50i
HD (720p)_HDR: 720 /50p
HD (720p)_SDR: 720 /50p

NORMAL /PM

1080 /50p- 100fps

HS_3G_HDR: 1080/50p-100fps
HS_HD_HDR: 1080/50i-100fps

no signal

3G_HDR: 1080 /50p
3G_SDR: 1080 /50p
HD_HDR (1080i): 1080 /50i
HD_SDR (1080i): 1080 /50i
HD_HDR (720p): 720 /50p
HD_SDR (720p): 720 /50p

HD (1080i)_HDR: 1080 /50i
HD (1080i)_SDR: 1080 /50i
HD (720p)_HDR: 720 /50p
HD (720p)_SDR: 720 /50p

NORMAL /PM

720 /50p- 200fps

HD_HDR: 720 /50p-200fps

HD_HDR (720p): 720 /50p
HD_SDR (720p): 720 /50p

NORMAL /PM

720 /50p- 150fps

HD_HDR: 720 /50p-150fps

no signal

HD_HDR (720p): 720 /50p
HD_SDR (720p): 720 /50p

NORMAL /PM

720 /50p- 100fps

HD_HDR: 720 /50p-100fps

no signal

HD_HDR (720p): 720 /50p
HD_SDR (720p): 720 /50p

NORMAL /PM

HD (50)

1080 /50p

3G: 1080 /50p
HD: 1080 /50i

HD: 1080 /50i

NORMAL /PM

1080 /25PsF

HD: 1080 /25PsF

NORMAL /PM

720 /50p

HD: 720 /50p

NORMAL /PM

HD_HDR (50)

1080 /50p

3G_HDR: 1080 /50p
HD_HDR: 1080 /50i
HD_SDR: 1080 /50i

3G_HDR: 1080 /50p
3G_SDR: 1080 /50p
HD_HDR: 1080 /50i
HD_SDR: 1080 /50i

HD_HDR: 1080 /50i
HD_SDR: 1080 /50i

NORMAL /PM

1080 /25PsF

HD_HDR: 1080 /25PsF
HD_SDR: 1080 /25PsF

NORMAL /PM

720 /50p

HD_HDR: 720 /50p
HD_SDR: 720 /50p

NORMAL /PM
